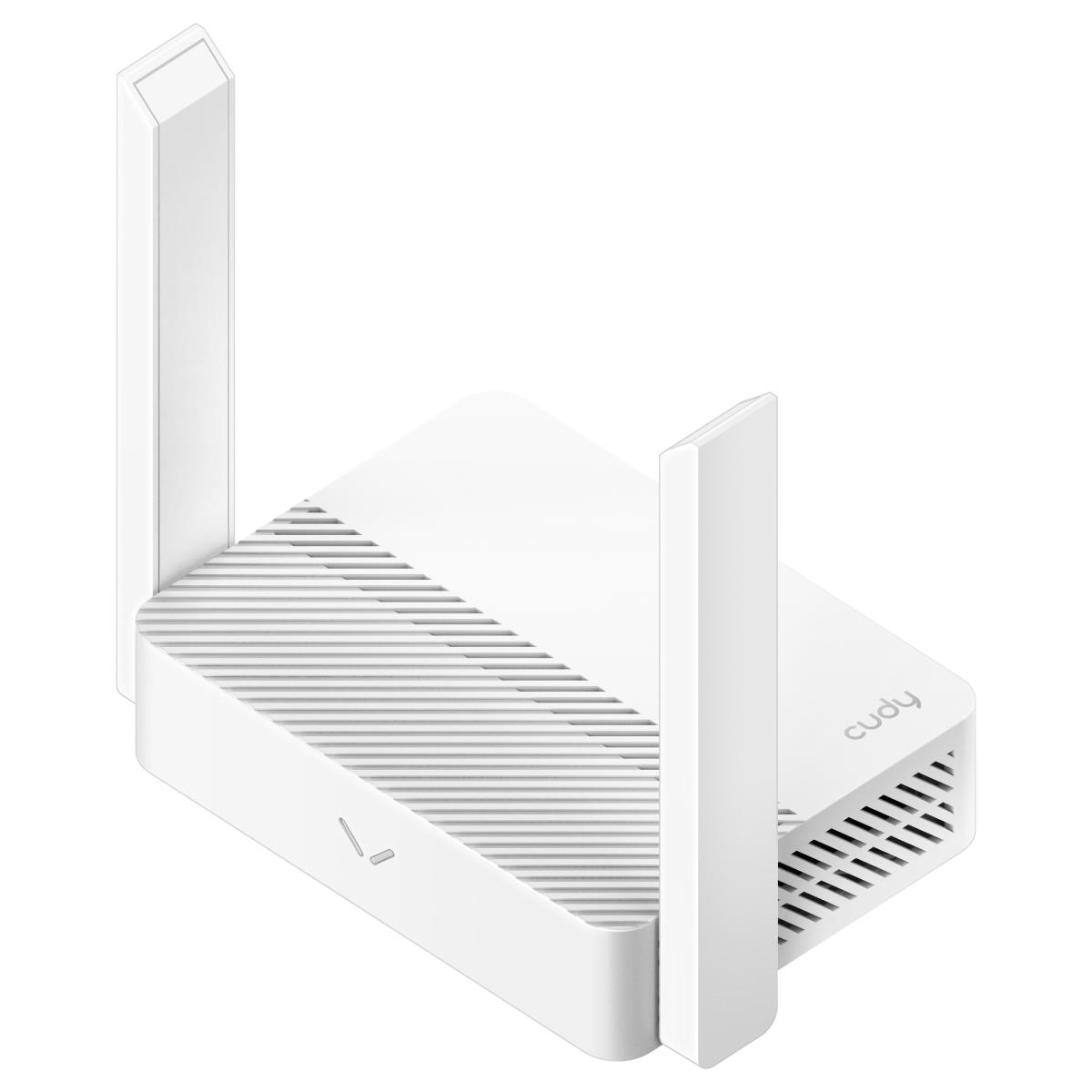

CUDY LT300_EU N300 WI-FI 4G LTE ROUTER, MIMO

Name: CUDY LT300_EU N300 WI-FI 4G LTE ROUTER, MIMO
Brand: CUDY
SKU: CD-LT300
Price: 43.90 EUR
Availability: InStock

A 4G WiFi router with one nano SIM slot and two Ethernet ports, providing easy-to-install flexible networks for home, office, surveillance, exhibitions, and RV scenarios.

4G Cat. 4 with Max 150 Mbps DL
300 Mbps Wi-Fi 1
1× Nano SIM Slot
VPN Server and Client
Cudy App, Cloud Control

CPU
Model Version	LT300 2.0
CPU	Chipset	MT7628
	CPU Details	580 MHZ Single-Core, MIPS24KEC
Memory/Storage
Memory/Storage	Flash/ROM	8 MB (64 Mbit ) NOR
	DDR/RAM	64 MB (512 Mbit) DDR2
Cellular
Cellular	Cellular Standards	4G Cat. 4
	Cellular Antennas	2× Fixed
	SIM Options	1× Nano SIM Slot
	Available Versions	EU
EU Version Cellular
EU Version Cellular	Suitable Region	Europe, Middle East, Africa
	Max DL Speed	150 Mbps (LTE-FDD), 130 Mbps (LTE-TDD)
	Max UL Speed	50 Mbps (LTE-FDD), 30 Mbps (LTE-TDD)
	Advanced	DL 2×2 MIMO
	Cellular Bands	LTE-FDD: B1/3/5/7/8/20/28 LTE-TDD: B38/40/41 WCDMA: B1/5/8
Wireless
Wireless	2.4 GHz Wi-Fi Speed	300 Mbps
	2.4 GHz Wi-Fi Streams	2T2R (2×2 MIMO)
	Wi-Fi Antennas	2× Internal
	2.4 GHz Antenna Gain Max	2.83 dBi
	Range Performance	Max: 100 m (328 ft) Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.
	Wall Performance	One wooden walls with thickness < 10 cm (4) One concrete wall with thickness < 10 cm (4)
Interfaces
Interfaces	Physical Buttons	WPS Button Reset Button
	10/100 Mbps RJ45 Ports	2
	Ethernet Notes	One port supports WAN/LAN configuration, and the rest are LAN ports
	LED	System Cellular Signal Strength
	Power Input	DC Jack
Power
Power	Power Methods	DC
	DC	12V 1A
	Power Adapter	Input: 100 ~ 240 V, 50/60 Hz AC Output: 12V 1A DC
	Max Power Consumption (W)	8W
	Idle Power Consumption (W)

Wireless
Wireless	Wi-Fi Standards	Wi-Fi 4
	Max Wi-Fi Modulation	64-QAM
	Max Capacity	64
	Recommended Client Upper Limit	30
	Max Wi-Fi Channel Width	40 MHz
	Wi-Fi Security	WPA/WPA2/WPA3
	Guest Network	2.4 GHz
	WPS	True
General
General	Operation Modes	Cellular Router Wi-Fi Router WISP
	Cellular APN	Band Select (Band Lock) Cellular Mode Select Data Roaming APN Profile Manual APN Profile MBN MTU Value
	Cellular Mode	4G Only 3G Only Auto
	WAN Mode	DHCP Static IP PPPOE L2TP PPTP
	Internet Failover Sequence	WAN WISP Cellular
Network
Network	QoS	Per-User Rate Limiting
	DHCP	Address Reservation DHCP Client List Server
	IP Versions	IPv4/IPv6
	IPv6 Protocols	Relay Dynamic (SLAAC/DHCPv6) Staic (Fixed IP) Passthrough 464XLAT MAP-E DS-Lite
	IPTV/VLAN	Bridge Tag VLAN
	TTL Customization	Extend Spoof Custom
	IGMP	IGMP Proxy IGMP Snooping
	Forwarding	Port Forwarding Port Triggering UPnP DMZ
	Firewall	SPI Firewall DoS Protection Block PING
	Application Layer Gateway	IPSec Passthrough L2TP Passthrough PPTP Passthrough FTP Passthrough TFTP Passthrough H323 Passthrough SIP Passthrough RTSP Passthrough
Utilities
Utilities	VPN Server	WireGuard OpenVPN PPTP L2TP
	VPN Client	WireGuard OpenVPN PPTP L2TP
	DNS Options	Manual DNS Rebind Protection Override Clients DNS
	Online Detection	True
Management
Management	All Devices Management	Wi-Fi Time Schedule MAC Filter IP/MAC Binding
	Per-Devices Management	Intenent On/Off VPN On/Off Online Time Schedule Device Rename
	Content Management	Domain Filter IP Filter
System
System	Local Control Method	Config Web Page App Control
	Remote Control Method	App Control Config Page via HTTP
	Firmware Upgrade	Local Update App (Over the Air) Online Update
