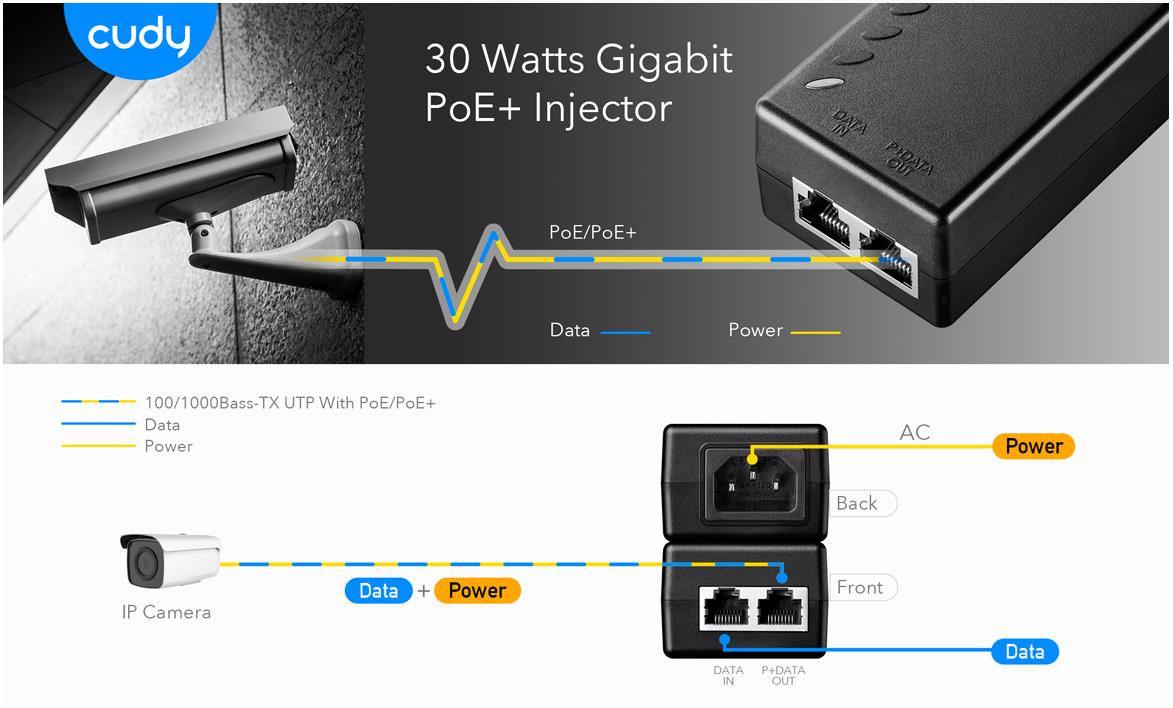

CUDY POE200 30W GIGABIT POE+/POE INJECTOR
22,85€
Άμεσα διαθέσιμο
CUDY POE200
30W GIGABIT POE+/POE INJECTOR
Supports 10/100/1000 Base-T applications
● Up to 30W Power Supply
● Supports 10/100/1000 Base-T applications
● LED indicators power input and PoE output
● Internal AC/DC converter no need for external power brick
● Easy plug-and-play installation
● Muti-protection
● Compatible with PoE 802.3af and PoE+ 802.3at Devices
POE200 V1.0| Model | POE200 |
| No. of channels | 1 |
| Pass Through Data Ratesi | 10/100/1000Mbps |
| Power over Ethernet Output | Pin Assignment and Polarity: 1/2 (-), 3/6 (+) |
| Output Power Voltage: 54VDC | |
| User Port Power: 30W max | |
| Input Power Requirements | AC Input Voltage: 100 to 240 VAC |
| AC Input Current: 0.5A 100-240 VAC | |
| AC Frequency: 50 to 60 Hz | |
| Dimensions | 121mm x 50mm x 36mm |
| Indicators | System Indicator: AC Power |
| User Indicator: Channel Power | |

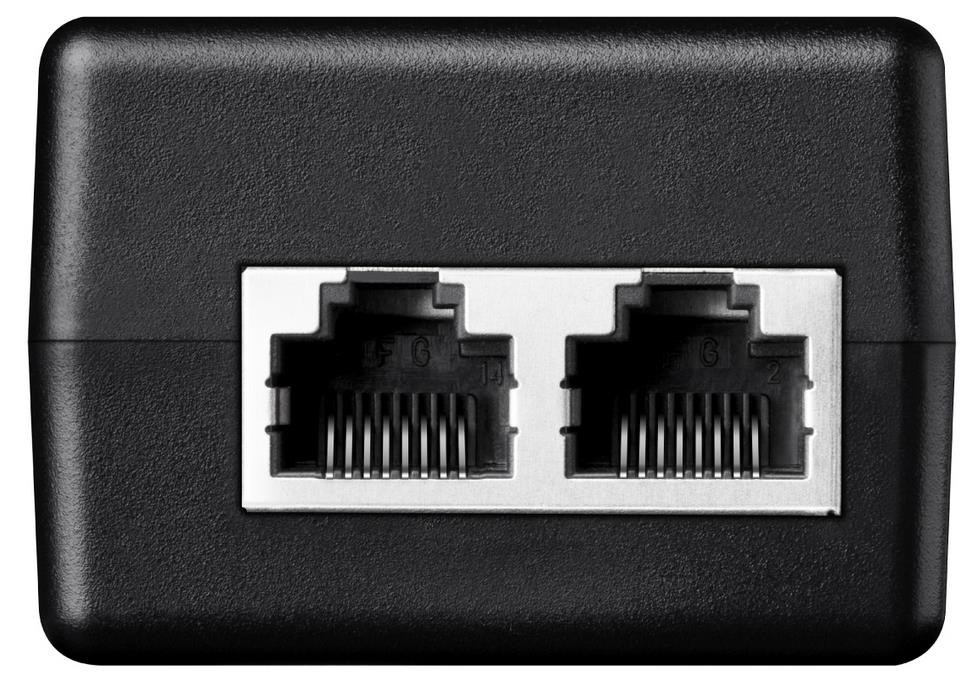

| Connectors | Shielded RJ-45, EIA 568A and 568B |
| Protection | Over current protection |
| Over load protection | |
| Over voltage protection | |
| Anti-interference protection | |
| Environmental Conditions | Operating Ambient Temperature:-40 to 40℃ |
| Operating Humidity: Maximum 85%, Non-condensing | |
| Storage Temperature:-40 to 50℃ | |
| Storage Humidity: Maximum 90%, Non-condensing |
Επιπλέον πληροφορίες
| Βάρος | 0,40 κ. |
|---|---|
| Kατασκευαστής N |
